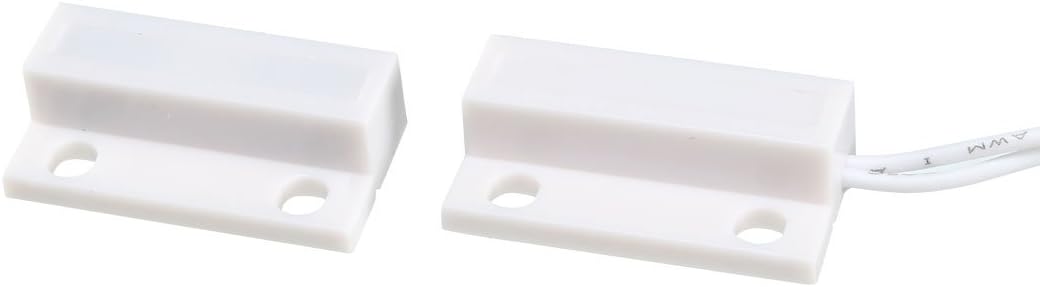

uxcell 30pcs MC-38 Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White
4.0 (49 items)
Limited Time SaleUS$25.49 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216533516 | Release Date | 2026/04/19 | List Price | US$17.00 | Model Number | 216533516 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description:1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted. 2.Switch Type: NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).3.Work as an anti-theft alarm, perfect for wood door and window. Specification:Product Name: Magnetic Door SwitchModel: MC-38Contact Type: NC (Normally Closed)Actuation Distance: 10-15mmMax. Current: 0.5AMax. Power: 10WWorking Voltage: DC100VEach Size(Approx): 27 x 14 x 7.5mm / 1.06-inch x 0.55-inch x 0.3-inch (L*W*H)Mounting Hole Diameter: 4mm/0.16-inchCable Length(Each): 26cm / 10.24-inchMaterial: ABS (Housing)Wire Type: 1007UL#24AWGColor: WhiteNet Weight: 320g Package Content:30pcs x Magnetic Door Switch, Some Install Parts Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
- ABS Normally Closed Door Contact Switch
- 0.5A Maximum Switch Current
- Will make Sense Door Closer at Roughly 10-15mm
- Self-Adhesive Mount, Screw Surface Mount
- Long wire lead that is side mounted
| Color | White |
|---|---|
| Model | a18051500ux0044 |
| Terminal | Screw,wire Lead |
| Brand Name | uxcell |
| Unit Count | 30.0 Count |
| Manufacturer | uxcell |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Door,Surface |
| Connector Type | Screw |
| Current Rating | 0.5 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 5.51 x 3.94 x 0.39 inches |
| Number of Items | 30 |
| Operating Voltage | 100 Volts |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP00 |
