iShoot Lens Collar Foot Support Tripod Mount Ring Base Compatible with Canon RF 800mm F5.6L IS USM, RF 600mm F4L IS USM, RF 400mm F2.8L IS USM, RF 100-300mm F2.8L IS USM, with Arca Quick Release Plate

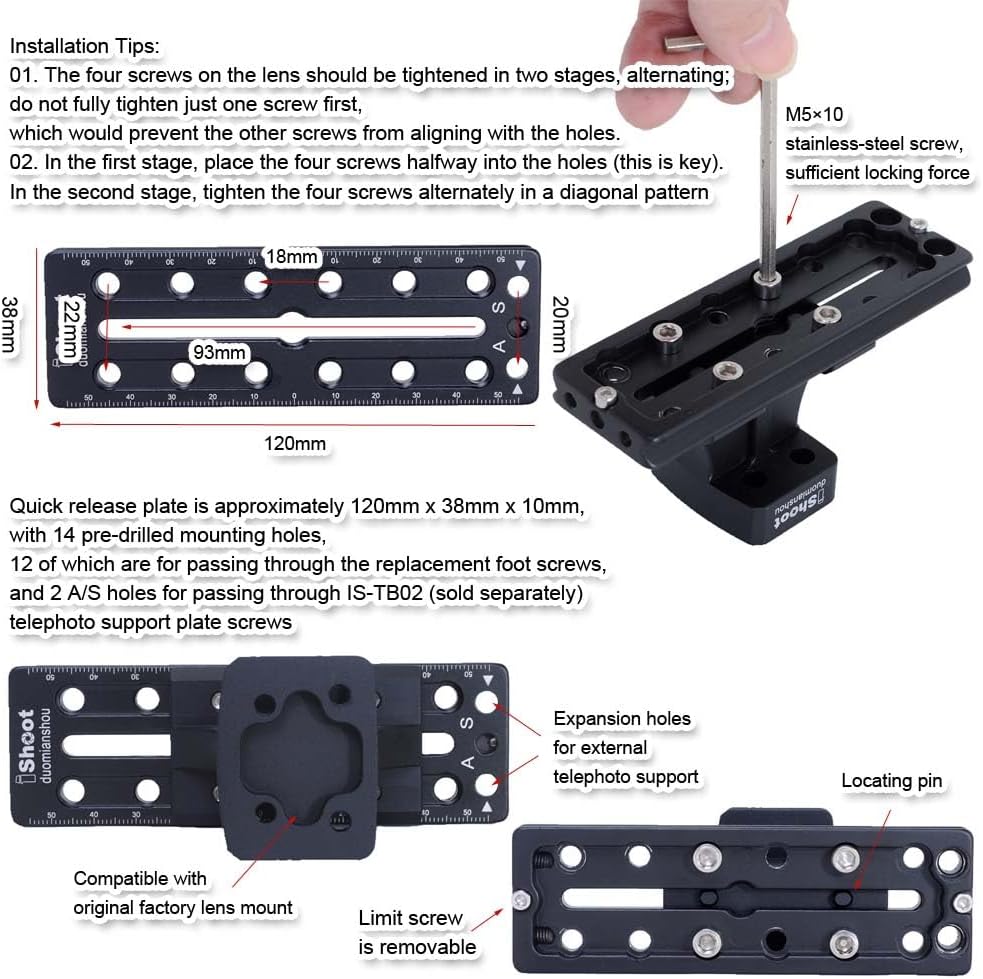

iShoot Adjustable Lens Collar Replacement Foot IS-THRF856AS Compatible with Canon RF 800mm F5.6L IS USM Lens Bottom is Arca Fit Quick Release Plate Feature, Compatible with ARCA-SWISS Fit Tripod Head Clamp Main Features: 1. This set weighs approximately 185g, with measured dimensions of about 120mm x 38mm x 55mm, consisting of two parts; the replacement foot is approximately 60mm x 38mm x 48mm, with the top compatible with the original manufacturer interface; 2. The quick release plate is approximately 120mm x 38mm x 10mm, with 14 pre-drilled mounting holes, 12 of which are for passing through the replacement foot screws, and 2 A/S holes for passing through IS-TB02 (sold separately) telephoto support plate screws; 3. Lens replacement foot IS-THRF856AS can be used with telephoto support plate IS-TB02 (sold separately) to protect the lens mount, share the mounting buffer force, and increase lens stability; 4. The tripod ring is made of Aviation Aluminum, CNC precisely machined, hollow-out weight reduction design, polished and surface anodized finish. The appearance and exquisite workmanship are much better than similar products made by mold. Compatible with Canon Lens: RF 100-300mm F2.8L IS USM RF 800mm F5.6L IS USM RF 400mm F2.8L IS USM RF 600mm F4L IS USM EF 400mm F2.8L IS III USM EF 600mm F4L IS III USM EF 400mm F4 DO IS II USM EF 200-400mm f/4L IS USM Extender 1.4x EF 500mm f/4.0L IS II USM EF 600mm f/4.0L IS II USM EF 300mm f/2.8L IS II USM EF 400mm f/2.8L IS II USM EF 800mm f/5.6L IS USM Cannot be used with other lenses Package Includes: 1 x iShoot Tripod Mount Ring Lens Foot IS-THRF856AS (Note: The other items in the photos not listed here are for illustrating only, not included)

• 1. In this set, by changing the screw holes used to install the replacement foot on the base plate, it can be moved parallel to adjust the lens’ center of gravity, making it more convenient and stable when mounting the lens on a tripod and using it with different camera bodies;
• 2. The transverse hole spacing of the base plate screws is approximately 18mm, the longitudinal hole spacing is approximately 22mm, the base plate sliding slot is approximately 93mm long, and the extension hole spacing for the external telephoto support plate is approximately 20mm;
• 3. Installation Tips: 01. The four screws on the lens should be tightened in two stages, alternating; do not fully tighten just one screw first, which would prevent the other screws from aligning with the holes.
• 4. 02. In the first stage, place the four screws halfway into the holes (this is key). In the second stage, tighten the four screws alternately in a diagonal pattern.
• 5. The quick release plate is Arca-swiss fit, can be used with Arca-Swiss fit tripod head and clamp directly;
