Industrial 5 PoE Gigabit Switch 10/100/1000Mbps 802.3at Ethernet Din Rail Mount

Overview The ZP-IMC005GP Series exemplifies a compact industrial-grade switch boasting 4 ports of 10/100/1000BASE-T 802.3at PoE along with an additional 10/100/1000T Ethernet port. Accommodating a broad power input range of 12~48VDC, this self-regulated industrial Ethernet switch is crafted to adhere to stringent industrial benchmarks. Its dependable and straightforward functioning amidst vibrations and shocks, coupled with an extensive operational temperature span, makes it suitable for a myriad of challenging settings.This switch is engineered to cater to the demanding nature of industrial setups, presenting a cost-effective solution for industrial Ethernet connectivity. Features 1. Five 10/100/1000BASET RJ45 auto-MDI/MDI-X ports inclusive of IEEE 802.3at PoE+ Injector functionality (Port-1 to Port-4) 2. 12~48VDC extensive power input range 3. 802.3x Flow control endorsement 4. DIN-Rail and Wall-mount installation capability 5. Maximized PoE allocation of 120-watt (48VDC), 90-watt (24VDC), and 60-watt (12VDC) 6. Adheres to industrial design norms, featuring an IP40-rated dustproof andsealed enclosure, encased in a rugged high-strength metal chassis 7. Operational temperature range extending from -40°C to 80°C (-40°F to 176°F), apt for harsh industrial environments Package 5-Port Gigabit Industrial Ethernet PoE Switch x1 Wall Mounting Kit x1 User 's Manual x1

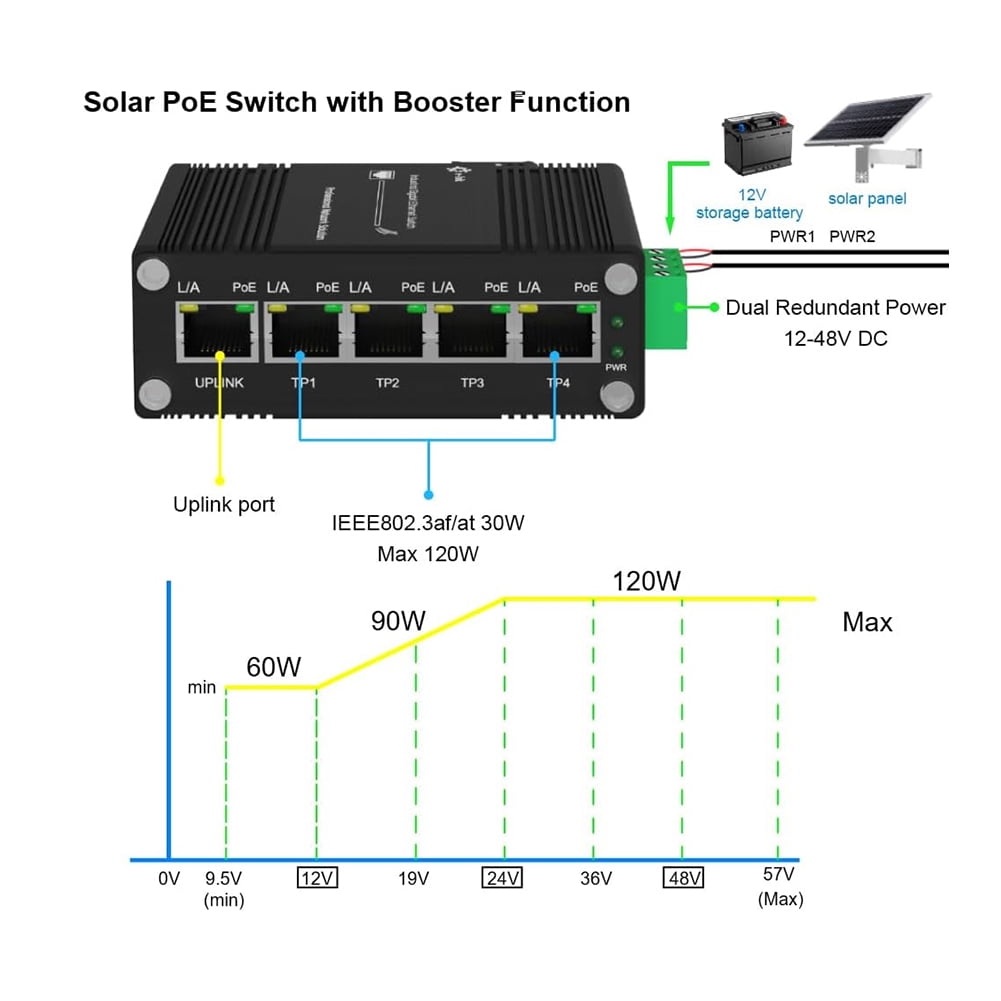

• Wide Voltage DC Input (12V-48V) to 48V PoE Output: Features a 12-48V wide-range DC input for reliable power redundancy. The PoE budget reaches up to 120W (with DC 48V input), 120W (with DC 24V input), or 60W (with DC 12V input).
• IEEE 802.3af/at PoE Compliance: Fully supports standard IEEE 802.3af/at PoE output, with a built-in voltage booster compatible with 12V-48V DC input.
• 4-Port Gigabit PoE + 1-Port Gigabit Uplink Switch: Equipped with 4 PoE-enabled 10/100/1000 Mbps RJ45 ports and 1 Gigabit uplink port. Supports 10/100 Mbps half/full duplex and 1000 Mbps full duplex operation.

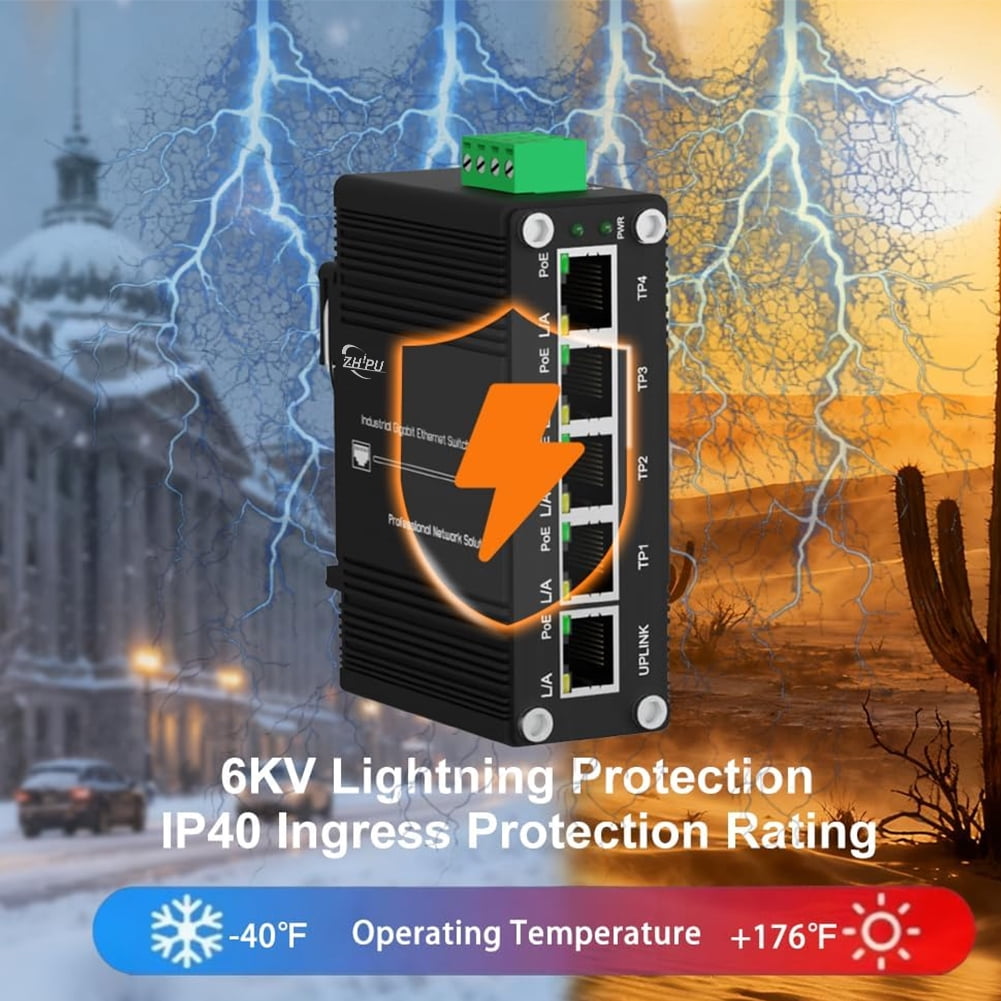

• IP40 Rated Aluminum Enclosure: Delivers 6000 V surge protection for reliable performance. Operates stably within a wide temperature range of -40°F to 167°F (-40°C to 75°C).

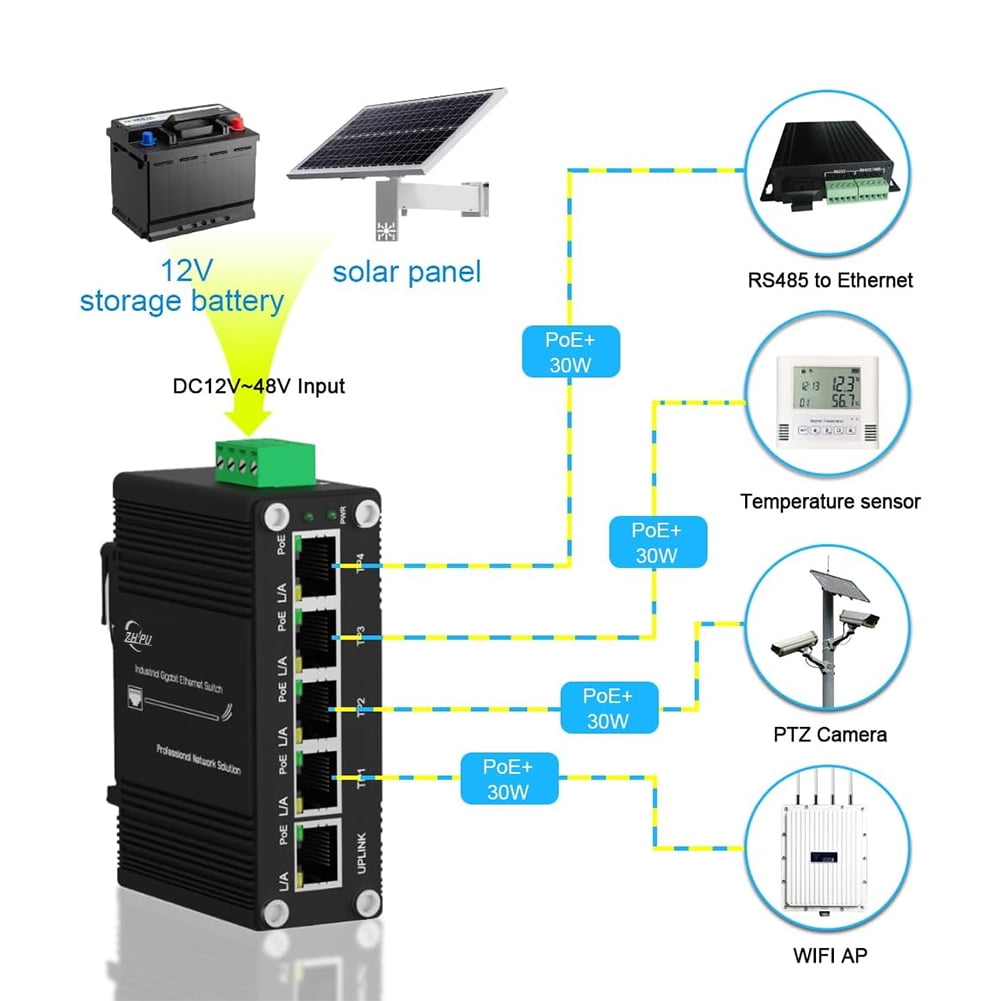

• Application Scenarios: Standard PoE power supply in RV / Vehicle / Truck / Bus (DC 12V input), VoIP / Access control systems (DC 24V input), and solar power systems (DC 12V / DC 18V / DC 36V input).
