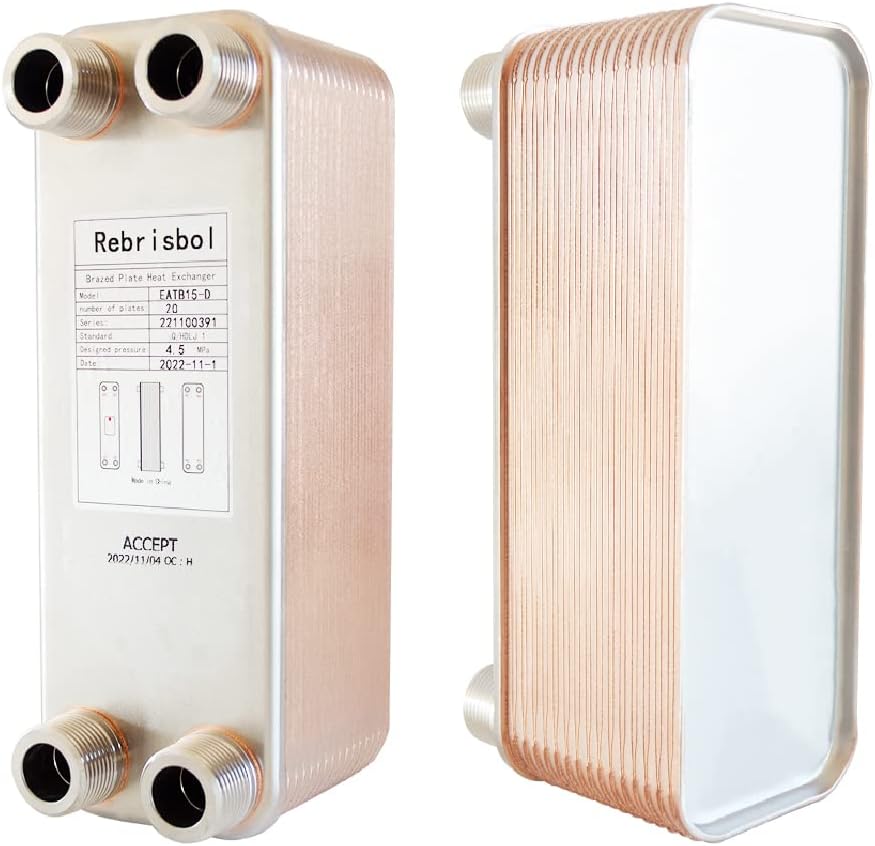

Brazed Plate Heat Exchanger 3"x8" 20 Plates Water To Water Heat Exchanger, Copper/SS316L Stainless Steel 3/4" NPT
4.1 (134 items)
Limited Time SaleUS$41.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 234203729 | Release Date | 2026/06/27 | List Price | US$27.60 | Model Number | 234203729 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Compact and lightweight design & quick and easy intallation
- 【Product Parameter】- Model: EATB15-D-20; Material: 316L stainless steel sheets + 99.9% copper; Plate: 3" x 8"-20 plates; Port: 3/4" MNPT; Designed Pressure: 4.5Mpa; Min Working Temp: -180℃; Max Working Temp: 200℃; Heat transfer area per plate: 0.014㎡; Volume per channel: 0.022L; Monolithic channel cross section area: 0.000148㎡
- 【Premium Quality】- Our brazed plate heat exchangers is made of high quality 316L stainless steel and the plates are vacuum high purity copper brazed together to form two separate flow channals. The fluids can pass in co-current or counter - current directions. High resistance to pressure and temperature fluctuations & corrosion resistance.
- 【Superior Design】- Special herring bone corrugation pattern of the plates not only creates a strong turbulent flow and move the media in opposite directions to get superior heat transfer rates and efficiency, but also prevents scaling from forming inside the unit and impress heat transfer rates.
- 【Wide Application】- This brazed plate heat exchangers are ideal for a variety of installations, including: Hydronic heating, domestic hot water heating, radiant heating, snow & ice melting, chilled water cooling, beer & wort chilling,hydraulic oil cooling, outdoor wood furnaces/stoves/boilers and other water to water and liquid to liquid heat transfer applications.
| ASIN | B0BKST9L33 |
|---|---|
| Size | EATB15-D-20 |
| Color | Rose gold |
| Item Weight | 4.13 pounds |
| Part Number | EATB15-D-20 |
| Manufacturer | Rebrisbol |
| Item model number | EATB15-D-20 |
| Batteries Included | No |
| Batteries Required | No |
| Product Dimensions | 3 x 3 x 8.7 inches |
