12000W Waterproof MPPT Charge Controller,Efficient DC IP67 Wind Turbines Generator Battery Charge Controller Regulator

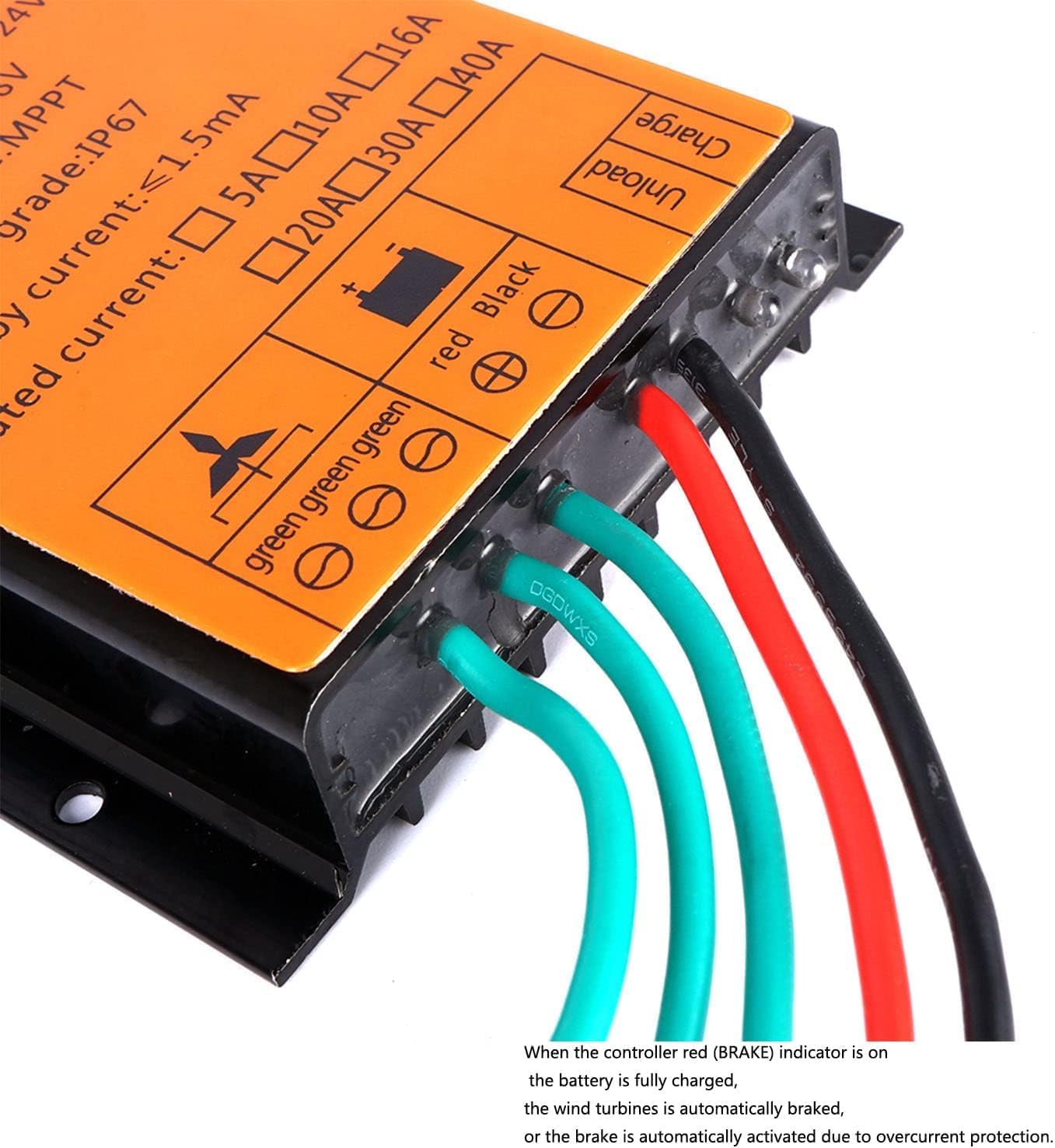

Product DescriptionWiring:1. Connect the “+” and “-” of the battery to the positive and negative terminals of the battery of the controller.2. Connect the three-phase output voltage of the wind turbines to the three-phase voltage input terminal of the controller fan.3. When manual brake is required, short the red thin wire to the positive battery, that is, complete the manual brake function. To cancel this function, just disconnect the thin red wirePackage list1x Wind Turbine Controller IP67 Waterproof1x controller manualSpecificationsRated battery voltage: 12V/24V/48VWind generator braking voltage: 60VWind generator recover voltage: 54VProtection class: IP67

• ✔Verify that the wind turbines output voltage matches the rated voltage of the battery.
• ✔ Wire in the following order, first connect the positive and negative terminals of the battery, and then connect the three-phase voltage output of the fan.
• ✔ Please carefully connect the battery and the wind turbines to the controller according to the instructions. Connecting the reverse polarity or the wrong position will cause the system to work abnormally and may even cause damage to the system components.
• ✔Although the controller has taken protective measures against various possible accidents, it is strongly recommended that users strictly abide by the operating procedures to prevent damage to the battery and controller.
• ✔Efficient 12000W DC 48V IP67 Waterproof MPPT Charge Controller Wind Turbines Generator Battery Charge Controller Regulator
